מיקרופון אלחוטי DJI Mic Mini זוגי

• Model

• DMMT01

• Dimensions

• 26.55×26.06×15.96 mm (L×W×H)

• Weight

• Approx. 10 g (excluding the clip magnet)

• Wireless Mode

• GFSK 2Mbps

• Equivalent Isotropic Radiated Power (EIRP)

• < 20 dBm

• Wireless Mode Operating Frequency

• 2.400-2.4835 GHz

• Bluetooth Protocol

• Bluetooth 5.3

• Bluetooth Operating Frequency

• 2.400-2.4835 GHz

• Bluetooth Transmitter Power (EIRP)

• < 20 dBm

• Battery Type

• Li-ion

• Battery Capacity

• 114 mAh

• Battery Energy

• 0.44 Wh

• Battery Voltage

• 3.87 V

• Charging Specification

• Max 5 V

• Charging Temperature

• 5° to 45° C

• Operating Temperature

• -10° to 45° C

• Charging Time

• Approx. 90 minutes

• Operating Time

• Approx. 11.5 hours
  ^{Measured using DJI Mic Mini (1 TX + 1 RX), with noise cancellation off, during close-range audio recording under interference-free conditions, with the transmitter connected to the receiver and the receiver connected to a camera via the Camera Audio Cable (3.5mm TRS).}

DJI Mic Mini Receiver

• Model

• DMMR01

• Dimensions

• 46.50×29.61×19.32 mm (L×W×H)

• Weight

• Approx. 17.8 g (including the interface cover)

• Wireless Mode

• GFSK 2Mbps

• Equivalent Isotropic Radiated Power (EIRP)

• < 20 dBm

• Operating Frequency

• 2.400-2.4835 GHz

• Bluetooth Protocol

• Bluetooth 5.3

• Bluetooth Transmitter Power (EIRP)

• < 20 dBm

• Bluetooth Operating Frequency

• 2.400-2.4835 GHz

• Battery Type

• Li-ion

• Battery Capacity

• 170 mAh

• Battery Energy

• 0.66 Wh

• Battery Voltage

• 3.87 V

• Charging Specification

• Max 5 V

• Charging Temperature

• 5° to 45° C

• Operating Temperature

• -10° to 45° C

• Charging Time

• Approx. 100 mins

• Operating Time

• Approx. 10.5 hours
  ^{Measured using DJI Mic Mini (1 TX + 1 RX), with noise cancellation off, during close-range audio recording under interference-free conditions, with the transmitter connected to the receiver and the receiver connected to a camera via the Camera Audio Cable (3.5mm TRS).}

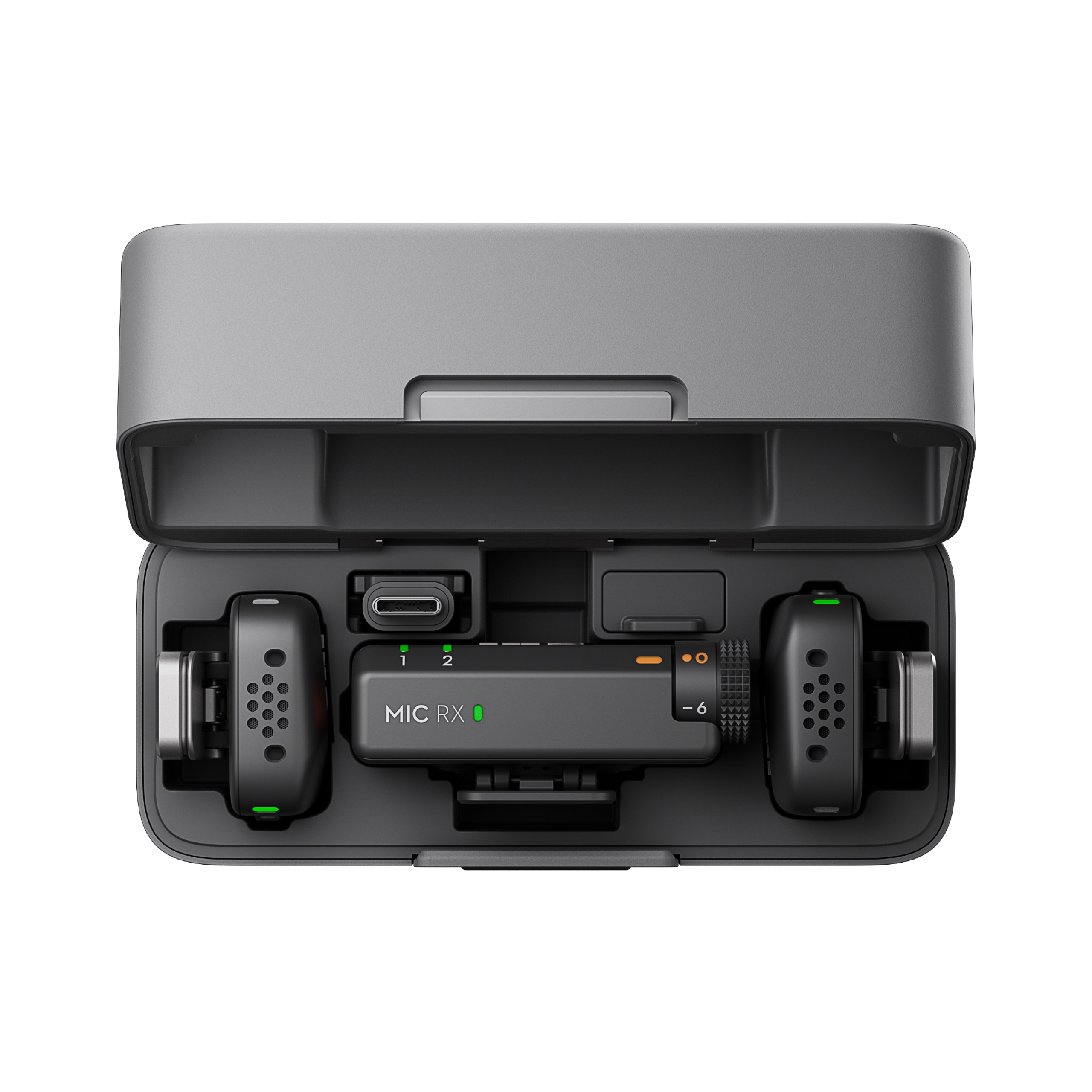

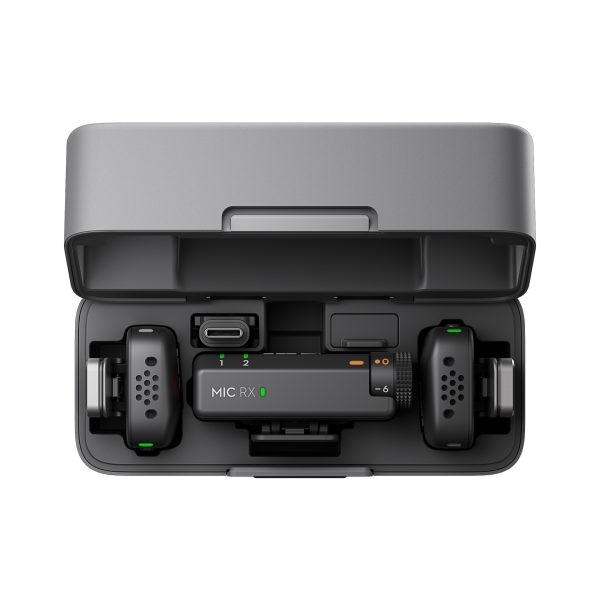

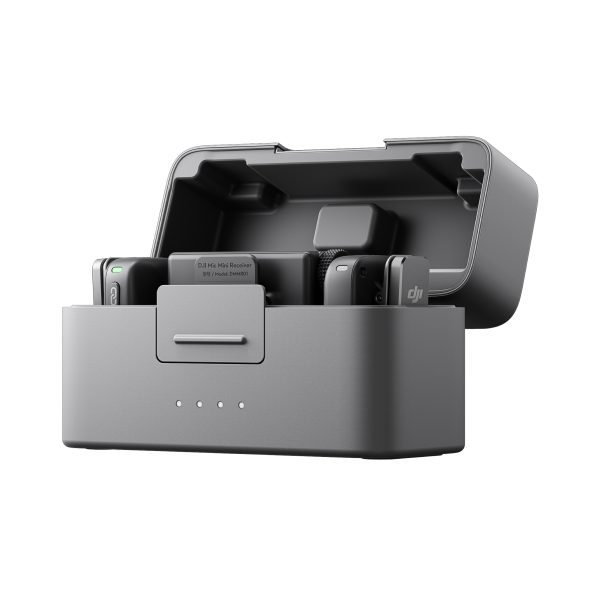

DJI Mic Mini Charging Case

• Model

• DMMC01

• Dimensions

• 96.10×41.00×59.35 mm (L×W×H)

• Weight

• Approx. 139 g (charging case only)

• Battery Type

• Li-ion

• Battery Capacity

• 1950 mAh

• Battery Energy

• 7.55 Wh

• Battery Voltage

• 3.87 V

• Charging Specification

• Max 5 V, 1.5-2 A

• Charging Temperature

• 5° to 40° C

• Operating Temperature

• 5° to 45° C

• Charging Time

• Approx. 2 hours

• Charging Cycles for TX and RX

• When charging two transmitters and one receiver simultaneously, a fully charged charging case can fully charge them for approx. 3.6 times.

General

• Polar Pattern

• Omnidirectional

• Frequency Response

• Low Cut Off: 20 Hz – 20 kHz
  Low Cut On: 100 Hz – 20 kHz

• Maximum Sound Pressure Level (SPL)

• 120 dB SPL

• Max Input Level (3.5 mm)

• –

• Equivalent Noise

• 24 dBA

• Monitor Interface Output Power

• –

• Max Transmission Distance

• 400 m
  ^{Measured in an open, unobstructed environment free of interference, and is for reference only.}
