באנדל Dji Avata 2 + Goggles Integra + RC Motion 2

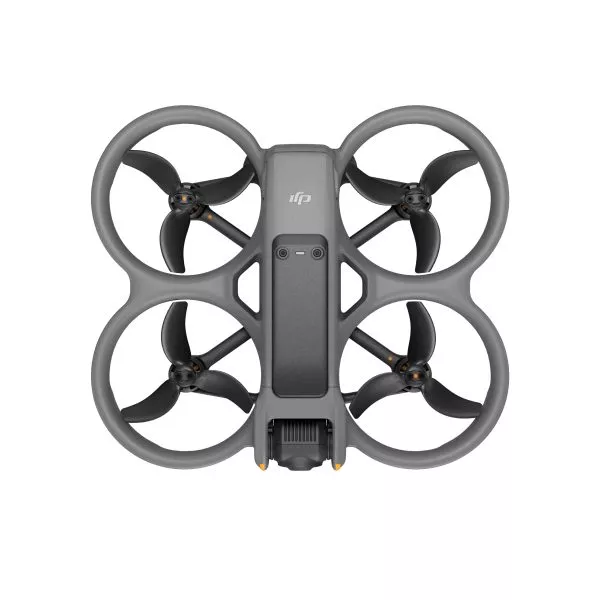

Aircraft

• Takeoff Weight

• Approx. 377 g

• Dimensions

• 185×212×64 mm (L×W×H)

• Max Ascent Speed

• ‌6 m/s (Normal mode)
  9 m/s (Sport mode)

• Max Descent Speed

• ‌6 m/s (Normal mode)
  9 m/s (Sport mode)

• Max Horizontal Speed
  (near sea level, no wind)

• 8 m/s (Normal mode)
  ‌16 m/s (Sport mode)
  27 m/s (Manual mode)*^{* No faster than 19 m/s with the Manual mode in the EU regions.}

• Max Takeoff Altitude

• 5000 m

  ^{Measured in a windless environment when taking off from an altitude of 5000 m and ascending vertically by 500 m, using Sport mode, and from 100% battery level until 20%. Data is for reference only. Always pay attention to reminders on the goggles' screens during your flight.}

• Max Flight Time

• ‌Approx. 23 mins

  ^{‌Measured when flying forward at a speed of 21.6 kph in a windless environment at sea level, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders on the goggles' screens during your flight.}

• Max Hovering Time

• ‌Approx. 21 mins

  ^{‌‌Measured when hovering in a windless environment at sea level, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders on the goggles' screens during your flight.‌}

• Max Flight Distance

• 13.0 km‌

  ^{‌Measured when flying forward at a speed of 43.2 kph in a windless environment at sea level, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders on the goggles' screens during your flight.}

• Max Wind Speed Resistance

• 10.7 m/s (Level 5)

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Global Navigation Satellite System

• GPS + Galileo + BeiDou

• Hovering accuracy range

• Vertical:
  ±0.1 m (with vision positioning)
  ±0.5 m (with GNSS positioning)Horizontal:
  ±0.3 m (with vision positioning)
  ±1.5 m (with GNSS positioning)

• Internal Storage

• 46 GB

Camera

• Image Sensor

• ‌1/1.3-inch image sensor
  Effective Pixels: 12 MP

• Lens

• ‌FOV: 155°
  Format Equivalent: 12 mm
  Aperture: f/2.8
  Focus: 0.6 m to ∞

• ISO Range

• 100-25600 (Auto)
  100-25600 (Manual)

• Shutter Speed

• Video: 1/8000-1/30 s
  Photo: 1/8000-1/50 s

• Max Image Size

• 4000×2256 (16∶9)
  4000×3000 (4∶3)

• Still Photography Mode

• Single shot

• Photo Format

• JPEG

• Video Resolution

• 4K (4∶3): 3840×2880@30/50/60fps
  4K (16∶9): 3840×2160@30/50/60fps
  2.7K (4∶3): 2688×2016@30/50/60fps
  2.7K (16∶9): 2688×1512@30/50/120fps
  1080p (4∶3): 1440×1080@30/50/120fps
  1080p (16∶9): 1920×1080@30/50/120fps

• Video Format

• MP4 (H.264/H.265)

• Max Video Bitrate

• 130 Mbps

• Supported File System

• exFAT

• Color Mode

• Standard
  D-Log M

• Camera FOV

• Supports normal mode, wide-angle mode, and ultra-wide-angle mode.

• EIS

• Supports RockSteady 3.0+ and HorizonSteady
  Can be disabled*^{* When stabilization is turned off, footage captured with the wide-angle view supports offline stabilization Gyroflow.}

Gimbal

• Stabilization

• Single-axis mechanical gimbal (tilt)

• Mechanical Range

• Tilt: -95° to 90°

• Controllable Range

• Tilt: -85° to 80°

• Max Control Speed (tilt)

• 100°/s

• Angular Vibration Range

• ±0.01°

• Electronic Roll Axis

• Real-time screen correction is unavailable during recording, but can be applied to the footage recorded on the drone.

Sensing

• Sensing Type

• Downward and backward visual positioning

• Downward

• ToF Effective Measurement Height: 10 m
  Precise Hovering Range: 0.3-10 m
  Measurement Range: 0.3-20 m
  FOV: Horizontal 78°, Vertical 78°

• Backward

• Measurement Range: 0.5-20 m
  FOV: Horizontal 78°, Vertical 78°

• Operating Environment

• Diffuse reflective surfaces with discernible patterns, diffuse reflectivity > 20% (such as concrete pavement)
  Adequate lighting (lux > 15, normal indoor lighting conditions)

Video Transmission

• Video Transmission System

• O4

• Live View Quality

• 1080p@30/50/60/100fps

• Operating Frequency

• 2.400-2.4835 GHz
  5.170-5.250 GHz*
  5.725-5.850 GHz*^{* 5.170-5.250 GHz and 5.725-5.850 GHz can be used only in countries and regions where permitted by local laws and regulations.}

• Transmitter Power (EIRP)

• 2.4 GHz:
  ＜33 dBm (FCC)
  ＜20 dBm (CE/SRRC/MIC)5.1 GHz:
  < 23 dBm (CE)5.8 GHz:
  ＜33 dBm (FCC)
  ＜30 dBm (SRRC)
  < 14 dBm (CE)

• Communication Bandwidth

• Max 60 MHz

• Max Transmission Distance (unobstructed, free of interference)

• FCC: 13 km (subject to the aircraft's max flight distance)
  CE: 10 km
  SRRC: 10 km
  MIC: 10 km^{Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders on the goggles screen during your flight.}

• Max Transmission Distance (unobstructed, with interference)

• Strong Interference: Urban landscape, approx.
  1.5-4 km
  Medium Interference: Suburban landscape, approx.
  4-10 km
  Low Interference: Suburb/seaside, approx.
  10-13 km^{Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.}

• Max Transmission Distance (obstructed, with interference)

• Low Interference and Obstructed by Buildings: approx. 0-0.5 km
  Low Interference and Obstructed by Trees: approx.
  0.5-3 km^{Data tested under FCC standard in environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.}

• Max Download Speed

• Wi-Fi: 30 MB/s*

  ^{* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.}

• Lowest Latency

• With DJI Goggles 3:
  1080p/100fps Video Transmission Quality: 24 ms
  1080p/60fps Video Transmission Quality: 40 ms‌

• Max Video Bitrate

• 60Mbps

• Antennas

• 4 antennas, 2T4R

Wi-Fi

• Protocol

• 802.11a/b/g/n/ac

• Operating Frequency

• 2.400-2.4835 GHz
  5.725-5.850 GHz

• Transmitter Power (EIRP)

• 2.4 GHz:
  <20 dBm (FCC／CE／SRRC／MIC)5.8 GHz:
  <20 dBm (FCC／SRRC)
  < 14 dBm (CE)

Bluetooth

• Protocol

• Bluetooth 5.0

• Operating Frequency

• 2.400-2.4835 GHz

• Transmitter Power (EIRP)

• <10 dBm

Intelligent Flight Battery

• Capacity

• 2150 mAh

• Weight

• Approx. 145 g

• Standard Voltage

• 14.76 V

• Max Charging Voltage

• 17 V

• Battery Type

• Li-ion

• Energy

• 31.7 Wh@0.5C

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Charging Time

• With Charging Hub (60W max charging power):
  From 0 to 100%: approx. 45 min‌
  From 10 to 90%: approx. 30 min‌‌Directly Charging the Drone (30 W max charging power):‌
  From 0 to 100%: approx. 88 min‌
  From 10 to 90%: approx. 60 min‌‌‌‌

Charger

• Recommended Charger

• DJI 65W Portable Charger
  DJI 65W Car Charger
  USB Power Delivery charger

Battery Charging Hub

• Input

• 5-20 V, max 3 A

• Output (power accumulation)

• Max 65 W

• Output (charging)

• Max 17 V

• Output (USB)

• 5 V, 2 A

• Charging Type

• Three batteries charged in sequence.

• Compatibility

• DJI Avata 2 Intelligent Flight Battery

Storage

• Recommended microSD Cards

• SanDisk Extreme PRO 32GB U3 A1 V30 microSDHC
  Lexar Professional 1066x 64GB U3 A2 V30 microSDXC
  Lexar Professional 1066x 128GB U3 A2 V30 microSDXC
  Lexar Professional 1066x 256GB U3 A2 V30 microSDXC
  Lexar Professional 1066x 512GB U3 A2 V30 microSDXC
  Kingston CANVAS Go! Plus 64GB U3 A2 V30 microSDXC
  Kingston CANVAS Go! Plus 128GB U3 A2 V30 microSDXC
  Kingston CANVAS React Plus 64GB U3 A1 V90 microSDXC
  Kingston CANVAS React Plus 128GB U3 A1 V90 microSDXC
  Kingston CANVAS React Plus 256GB U3 A1 V90 microSDXC
  Samsung EVO Plus 512GB U3 A2 V30 microSDXC

DJI FPV Remote Controller 3

• Max Operating Time

• Approx. 10 hours

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Charging Temperature

• 0° to 50° C (32° to 122° F)

• Charging Time

• 2 hours

• Charging Type

• 5 V, 2 A

• Battery Capacity

• 2600 mAh

• Weight

• Approx. 240 g

• Dimensions

• 165×119×62 mm (L×W×H)

• Operating Frequency

• 2.400-2.4835 GHz

• Transmitter Power (EIRP)

• 2.400 GHz:
  ＜26 dBm (FCC)
  ＜20 dBm (CE/SRRC/MIC)

Others

• Guaranteed software updates until

• 2026/12/31

  Remote Controller

  • Model

  • RM220

  • Weight

  • Approx. 170 g

  • Operating Frequency

  • 2.4000-2.4835 GHz
    5.725-5.850 GHz
    ^{The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.}

  • Transmitter Power (EIRP)

  • 2.4000-2.4835 GHz:
    < 30 dBm (FCC)
    < 20 dBm (CE/SRRC/MIC)
    5.725-5.850 GHz:
    < 30 dBm (FCC)
    < 23 dBm (SRRC)
    < 14 dBm (CE)

  • Max Transmission Distance (unobstructed, interference-free)

  • 10 km (FCC)
    6 km (CE/SRRC/MIC)
    ^{When used with different aircraft, the motion controller will automatically select the corresponding firmware to match the video transmission specification of the aircraft. Measured in an outdoor open environment without interference. Actual data varies with operating environment.}

  • Operating Temperature

  • -10° to 40° C (14° to 104° F)

  • Operating Time

  • Approx. 5 hours
    ^{Measured with an ambient temperature of 25° C (77° F), when connected to DJI Avata, and in a stationary state.}

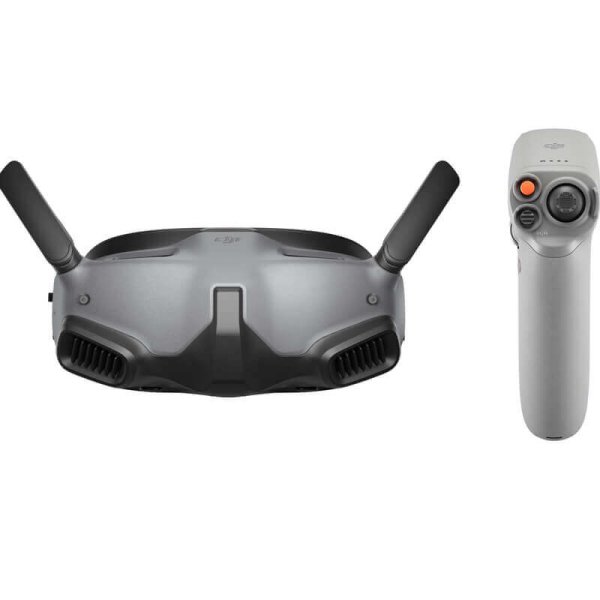

  Goggles

  • Model

  • RCDS13

  • Weight

  • Approx. 410 g (battery included)

  • Dimensions (L×W×H)

  • With antennas folded: 170×104×75 mm
    With antennas unfolded: 205×104×104 mm

  • Screen Size (single screen)

  • 0.49-inch

  • Resolution (single screen)

  • 1920×1080

  • Refresh Rate

  • Up to 100 Hz

  • IPD Range

  • 56-72 mm

  • FOV (single screen)

  • 44°

  • Video Recording Format

  • MOV

  • Supported Video Playback Formats

  • MP4, MOV (video formats: H.264, H.265; audio formats: AAC, PCM)

  • Operating Temperature

  • -10° to 40° C (14° to 104° F)

  • Power Input

  • Built-in battery

  • Supported SD Cards

  • microSD (up to 512 GB)

  • Recommended microSD Cards

  • SanDisk Extreme U3 V30 A1 32GB microSDXC
    SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
    Lexar 1066x U3 V30 A2 64GB microSDXC
    Lexar 1066x U3 V30 A2 128GB microSDXC
    Lexar 1066x U3 V30 A2 256GB microSDXC
    Lexar 1066x U3 V30 A2 512GB microSDXC
    Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC
    Kingston Canvas Go! Plus U3 V30 A2 128GB microSDXC
    Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
    Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
    Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
    Samsung EVO Plus U3 V30 A2 512GB microSDXC

  Video Transmission

  • Video Transmission

  • When used with different aircraft, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft.
    DJI Avata: O3+

  • Operating Frequency

  • 2.4000-2.4835 GHz
    5.725-5.850 GHz
    ^{The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.}

  • Transmitter Power (EIRP)

  • 2.4000-2.4835 GHz:
    < 30 dBm (FCC)
    < 20 dBm (CE/SRRC/MIC/KC)
    5.725-5.850 GHz:
    < 30 dBm (FCC)
    < 23 dBm (SRRC)
    < 14 dBm (CE/KC)

  • Transmission Latency

  • 1080p/100fps: as low as 30 ms
    1080p/60fps: as low as 40 ms
    ^{Measured in an open outdoor environment without interference. Actual data varies with different aircraft models.}

  • Max Transmission Distance

  • When used with DJI Avata or the DJI O3 Air Unit, DJI Goggles Integra can achieve the following max video transmission distance:
    10 km (FCC), 2 km (CE), 6 km (SRRC)
    When used with DJI FPV, DJI Goggles Integra can achieve the following max video transmission distance:
    10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

  • Max Video Bitrate

  • 50 Mbps
    ^{Measured in an open outdoor environment without interference. Actual data varies with operating environment.}

  Battery

  • Weight

  • Approx. 185 g (headband included)

  • Dimensions (L×W×H)

  • 120×51×71 mm

  • Capacity

  • 2450 mAh

  • Voltage

  • 5.6-8.4 V

  • Type

  • Li-ion

  • Chemical System

  • LiNiMnCoO2

  • Energy

  • 17.64 Wh

  • Charging Temperature

  • 5° to 45° C (41° to 113° F)

  • Max Charging Power

  • 15 W (charging when powered off)

  • Operating Time

  • Approx. 2 hours
    ^{Measured with an ambient temperature of 25° C (77° F), screen brightness at 4, connection to DJI Avata, the video transmission mode set to 1080p/100fps, head tracking off, and the goggles' battery fully charged and not supplying power to external devices such as smartphones.}
