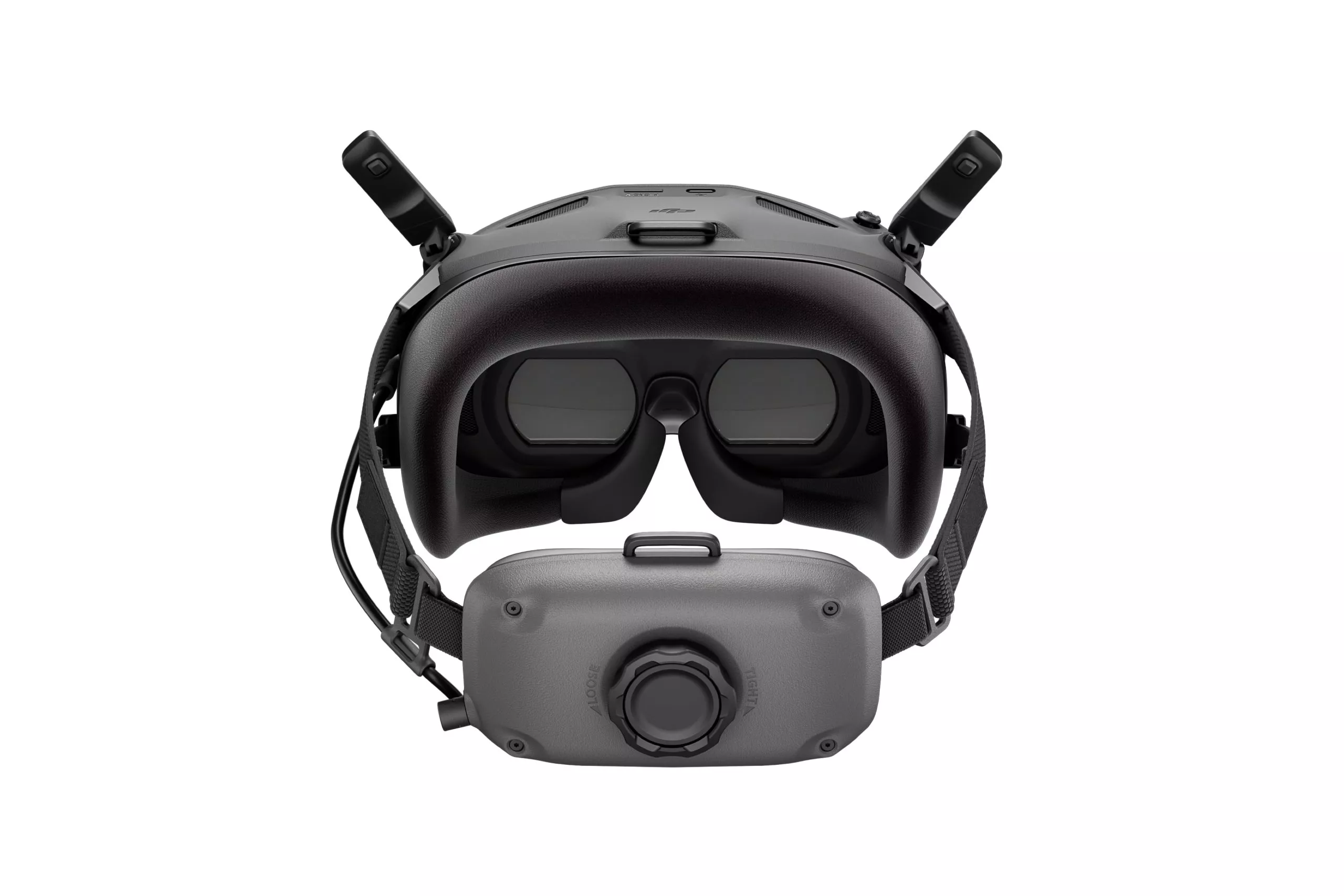

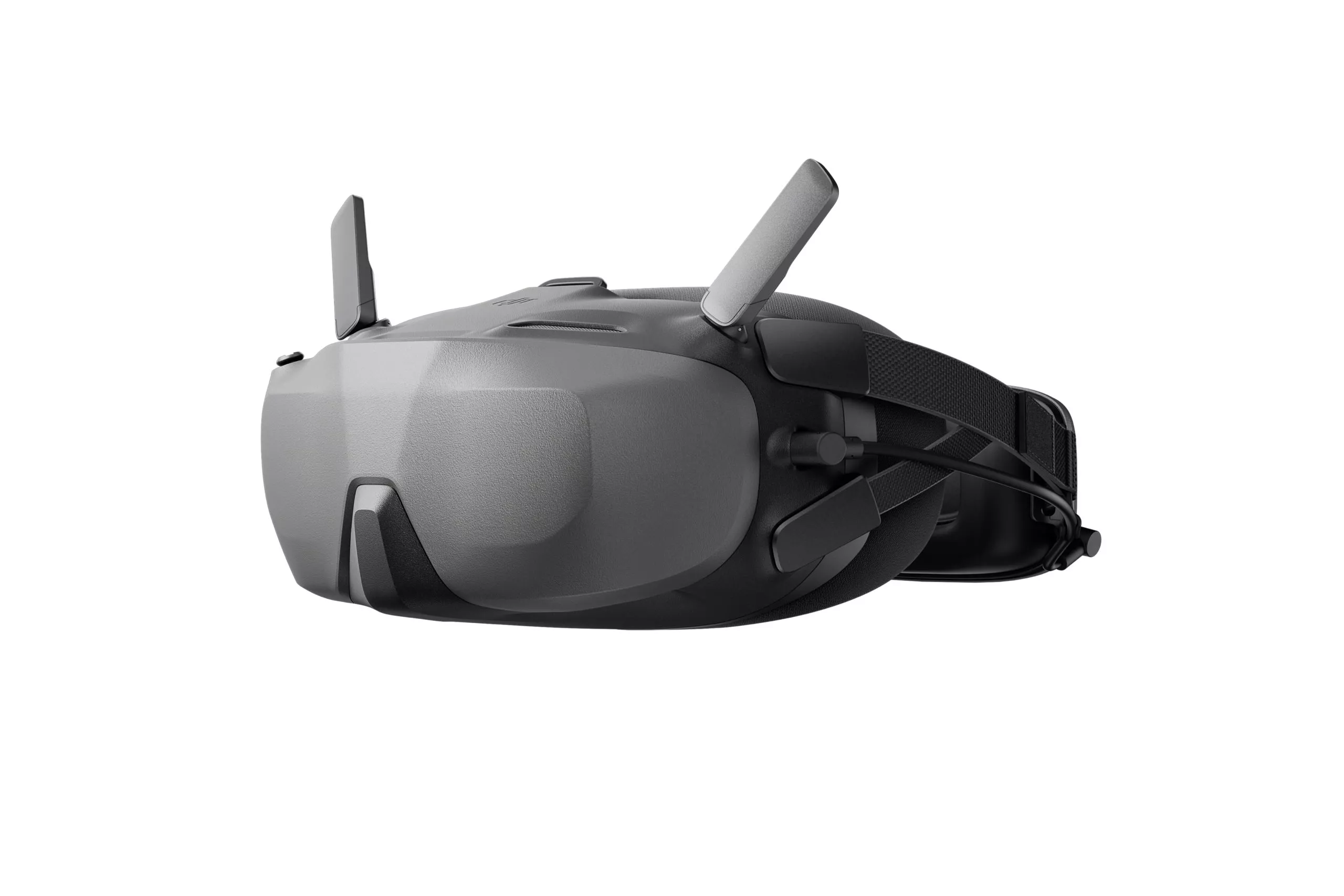

משקף DJI Goggles N3

Goggles

• Model

• TKGS3

• Weight

• Approx. 470 g (battery included)

• Dimensions (L×W×H)

• With antennas folded: 170×109×112 mm (L×W×H)
  With antennas unfolded: 205×109×112 mm (L×W×H)

• Screen Size (single screen)

• 0.49 inch

• Resolution (single screen)

• 1920×1080

• Refresh Rate

• Up to 100 Hz

• Interpupillary Distance Range

• 56-72 mm

• Diopter Adjustment Range

• -6.0 D to +2.0 D

• FOV (single screen)

• 44°

• Video Recording Format

• MOV

• Supported Video and Audio Playback Formats

• MP4, MOV (video coding formats: H.264, H.265; audio formats: AAC, PCM)
  Panoramic Video: Spherical 2D panoramic videos.
  3D Video: Half-Side-by-Side (HSBS), Full-Side-by-Side (FSBS), Half Over-Under (HOU), Full Over-Under (FOU).
  Max Video Specification: 4K/60fps

• Real View FOV

• 44°

• Operating Temperature

• -10°C to 40°C (14°F to 104°F)

• Power Input

• Built-in battery

• Supported SD Cards

• microSD (up to 512 GB)

• Recommended microSD Cards

• Kingston CANVAS Go! Plus 64GB U3 A2 V30 microSDXC
  Kingston CANVAS Go! Plus 128GB U3 A2 V30 microSDXC
  Kingston CANVAS Go! Plus 256GB U3 A2 V30 microSDXC
  Kingston CANVAS Go! Plus 512GB U3 A2 V30 microSDXC
  Lexar Professional 1066x 64GB U3 A2 V30 microSDXC
  Lexar Professional 1066x 128GB U3 A2 V30 microSDXC
  Lexar Professional 1066x 256GB U3 A2 V30 microSDXC
  Lexar Professional 1066x 512GB U3 A2 V30 microSDXC

Video Transmission

• Video Transmission

• When used with different aircraft, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft.
  With DJI Avata 2: DJI O4

• Operating Frequency

• 2.4000-2.4835 GHz
  5.150-5.250 GHz
  5.725-5.850 GHz^{Some countries and regions prohibit the use of the 5.1GHz or 5.8GHz frequency band, or both. In some countries and regions, the 5.1GHz frequency is only allowed for indoor use. Before flying, make sure to check and comply with local regulations.}

• Transmitter Power (EIRP)

• 2.4 GHz:
  < 33 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)
  5.1 GHz:
  < 23 dBm (CE)
  5.8 GHz:
  < 33 dBm (FCC)
  < 30 dBm (SRRC)
  < 14 dBm (CE)

• Latency

• With DJI Avata 2:
  1080p/100fps video transmission quality: latency down to 24 ms
  ‌1080p/60fps video transmission quality: latency down to 40 ms^{Measured in an open outdoor environment without interference. Actual data varies with different aircraft models.}

• Max Transmission Distance

• When used with DJI Avata 2, DJI Goggles 3 can achieve the following max video transmission distance:
  13 km (FCC); 10 km (CE/SRRC/MIC)

• Max Video Bitrate

• 60 Mbps

  ^{Measured in an outdoor open environment without interference. Actual data varies with the operating environment.}

Wi-Fi

• Protocol

• 802.11 a/b/g/n/ac

• Operating Frequency

• 2.4000-2.4835 GHz
  5.170-5.250 GHz
  5.725-5.850 GHz^{Some countries and regions prohibit the use of the 5.1GHz or 5.8GHz frequency band, or both. In some countries and regions, the 5.1GHz frequency is only allowed for indoor use. Before flying, make sure to check and comply with local regulations.}

• Transmitter Power (EIRP)

• 2.4 GHz:
  < 20 dBm (FCC/CE/SRRC/MIC)
  5.1 GHz:
  < 20 dBm (FCC/CE/MIC)
  5.8 GHz:
  < 20 dBm (FCC/SRRC)
  < 14 dBm (CE)

Bluetooth

• Protocol

• Bluetooth 5.0

• Operating Frequency

• 2.400-2.4835 GHz

• Transmitter Power (EIRP)

• < 10 dBm

GFSK

• Operating Frequency

• 2.4000-2.4835 GHz

• Transmitter Power (EIRP)

• < 26 dBm (FCC)
  < 20 dBm (CE/SRRC/MIC)

Battery

• Dimensions

• 121×65×52.5 mm (L×W×H)

• Capacity

• 3000 mAh

• Voltage

• 5.6-8.4 V

• Category

• Li-ion

• Chemical System

• LiNiMnCoO2

• Energy

• 21.6 Wh

• Charging Temperature

• 0° C to 50° C (32° F to 122° F)

• Max Charging Power

• 20 W (charging when powered off)

• Runtime

• Approx. 3 hours

  ^{The 3-hour max operating time was measured at an ambient temperature of 25° C (77° F), screen brightness at 4, connected to the DJI Avata 2 aircraft, video transmission set to 1080p/100fps, Head Tracking off, Real View off, and the battery of the goggles fully charged and not supplying power to external devices such as smartphones.}
